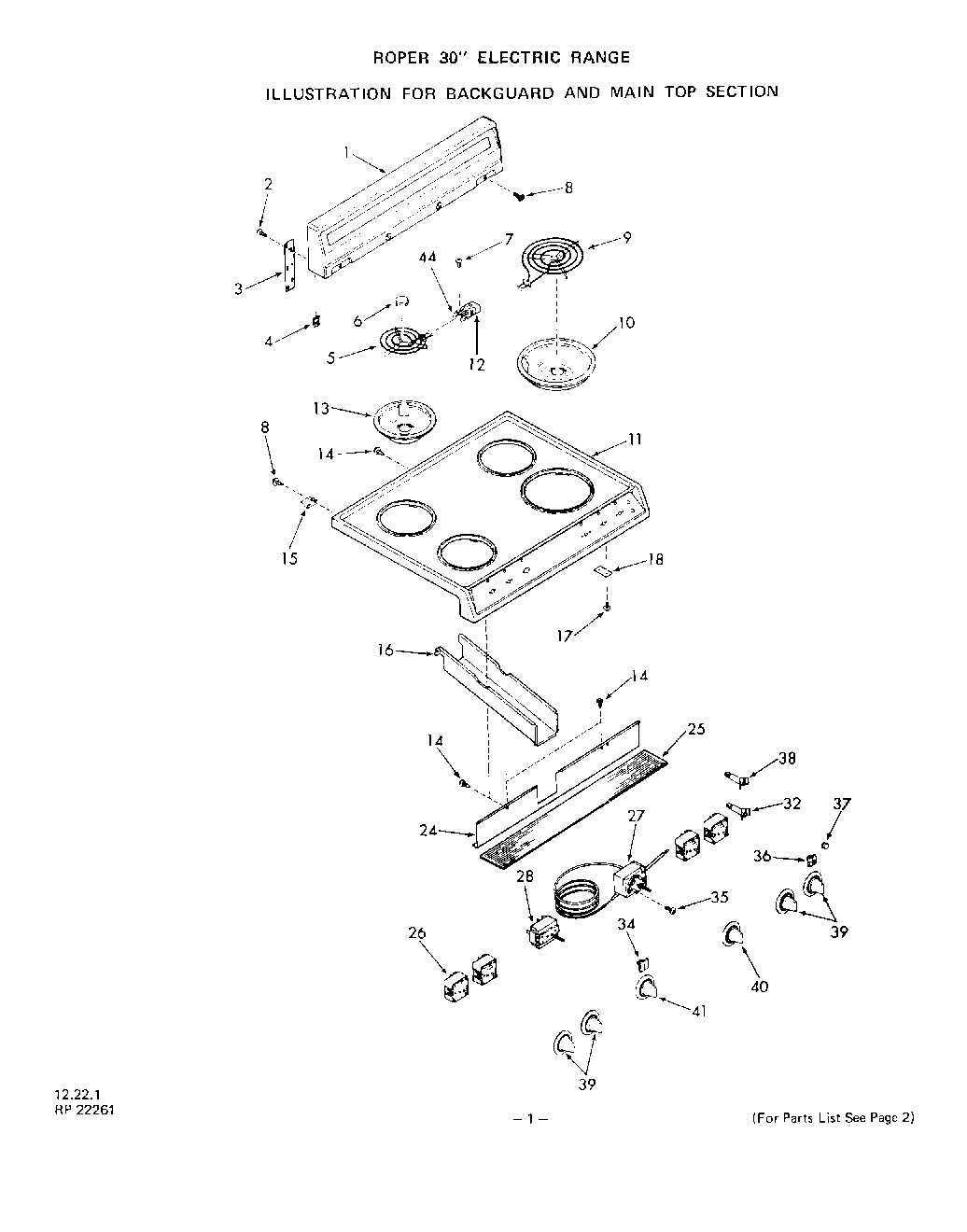

Model Whirlpool 2413^0A ELECTRIC RANGE – Common Parts & Diagrams

1
Backguard (White)
Backguard (White) WPL 322230 Contact Us For Availability
View on Model
1
Backguard (Almond)
Backguard (Almond) WPL 322231 Contact Us For Availability
View on Model
3
Support-Backguard (Lt. or Rt.)
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
View on Model
4
Speed Nut 10 - 32
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
View on Model
5
6`` Surface Unit (Lt. Rt. Rr. & Lt. Frt.)
6`` Surface Unit (Lt. Rt. Rr. & Lt. Frt.) WPL 318580 Contact Us For Availability
View on Model
6
Medallion (4 Required)
Medallion (4 Required) WPL 318579 Contact Us For Availability
View on Model
7
Screw 7-32x5/16``
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
View on Model
8
Screw 10-32x7/16``
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
View on Model
9
8`` Surface Unit (Rt. Front)
8`` Surface Unit (Rt. Front) WPL 318582 Contact Us For Availability
View on Model
10
8`` Chrome Bowl (Rt. Front)
8`` Chrome Bowl (Rt. Front) WPL 304969 Contact Us For Availability
View on Model
11
Main Top (White)
Main Top (White) WPL 302671 Contact Us For Availability
View on Model
11
Main Top (Almond)
Main Top (Almond) WPL 308740 Contact Us For Availability
View on Model
12
Terminal Block w/Wire Leads (4 Req.)
Terminal Block w/Wire Leads (4 Req.) WPL 318960 Contact Us For Availability
View on Model
13
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
View on Model
15
Retainer-Main Top (Lt. or Rt.)
Retainer-Main Top (Lt. or Rt.) WPL 301672 Contact Us For Availability
View on Model
17
Screw 10-32x3/8``
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
View on Model
18
Strap-Hold Down (Rt. or Lt.)
Strap-Hold Down (Rt. or Lt.) WPL 302360 Contact Us For Availability
View on Model
24
Cover-Controls
Cover-Controls WPL 306571 Contact Us For Availability
View on Model
25
Insulation-Corrugated Asbestos
Insulation-Corrugated Asbestos WPL 303046 Contact Us For Availability
View on Model
26
Infinite Control (4 Required)
Infinite Control (4 Required) WPL 320944 Contact Us For Availability
View on Model
27
Thermostat Oven
Thermostat Oven WPL 320938 Contact Us For Availability
View on Model
28
Selector Switch
Selector Switch WPL 320862 Contact Us For Availability
View on Model
32
Indicator Light-Oven
Indicator Light-Oven WPL 288970 Contact Us For Availability
View on Model
34
Button I.D. (Oven & Selector)
Button I.D. (Oven & Selector) WPL 301774 Contact Us For Availability
View on Model
35
Screw 8-32x3/16`` (2 Each Req. for Keys 26, 2
Screw 8-32x3/16`` (2 Each Req. for Keys 26, 2 WPL 78565 Contact Us For Availability
View on Model
36
Button-I.D. (Infinite)-4 Required
Button-I.D. (Infinite)-4 Required WPL 301772 Contact Us For Availability
View on Model
37
Lens-Indicator Light
Lens-Indicator Light WPL 233161 Contact Us For Availability
View on Model
38
Indicator Light-Surface
Indicator Light-Surface WPL 288814 Contact Us For Availability
View on Model
39
Knob-Infinite Control
Knob-Infinite Control WPL 320886 Contact Us For Availability
View on Model
40
Knob-Oven Thermostat
Knob-Oven Thermostat WPL 320888 Contact Us For Availability
View on Model
41
Knob-Selector
Knob-Selector WPL 320887 Contact Us For Availability
View on Model
44
Bracket-Terminal Block
Bracket-Terminal Block WPL 318872 Contact Us For Availability
View on Model
70
Top-Wire Cover Main Back
Top-Wire Cover Main Back WPL 302111 Contact Us For Availability
View on Model
71
Clip
Clip WPL 70588 Contact Us For Availability
View on Model
72
Screw 10-32x7/16``
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
View on Model
73
Junction Block
Junction Block WPL 305759 Contact Us For Availability
View on Model
74
Screw 10-32x1``
Screw 10-32x1`` WPL 313190 Contact Us For Availability
View on Model
75
Wire Cover-Main Back
Wire Cover-Main Back WPL 296026 Contact Us For Availability
View on Model
79
Washer
Washer WPL 299425 Contact Us For Availability
View on Model
80
Range Service Mounting Plate
Range Service Mounting Plate WPL 281903 Contact Us For Availability
View on Model
81
Spacer-Main Top
Spacer-Main Top WPL 303513 Contact Us For Availability
View on Model
82
Insulation - Oven Back
Insulation - Oven Back WPL 296140 Contact Us For Availability
View on Model
83
Main Back
Main Back WPL 322229 Contact Us For Availability
View on Model
84
Body Side (White-Right)
Body Side (White-Right) WPL 316978 Contact Us For Availability
View on Model
84
Body Side (White-Left)
Body Side (White-Left) WPL 316979 Contact Us For Availability
View on Model
84
Body Side (Almond-Right)
Body Side (Almond-Right) WPL 316984 Contact Us For Availability
View on Model
84
Body Side (Almond-Left)
Body Side (Almond-Left) WPL 316985 Contact Us For Availability
View on Model
85
Insulation-Oven Top, Bottom & Sides (1 Piece)
Insulation-Oven Top, Bottom & Sides (1 Piece) WPL 296138 Contact Us For Availability
View on Model
86
Retainer-Lower Insulation
Retainer-Lower Insulation WPL 313281 Contact Us For Availability
View on Model
87
Front Frame
Front Frame WPL 316992 Contact Us For Availability
View on Model
88
Leg Leveler (4 Required)
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
View on Model
90
Grommet - Screw (8 Req.)
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
View on Model
91
Washer
Washer WPL 303963 Contact Us For Availability
View on Model
93
Oven Vent Tube
Oven Vent Tube WPL 308726 Contact Us For Availability
View on Model
94
Thermostat Bulb Clip (2 Required)
Thermostat Bulb Clip (2 Required) WPL 24558 Contact Us For Availability
View on Model
95
Screw 10-32 x 5/8``
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
View on Model
96
Oven Door Hinge (Right)
Oven Door Hinge (Right) WPL 303132 Contact Us For Availability
View on Model
96
Oven Door Hinge (Left)
Oven Door Hinge (Left) WPL 303133 Contact Us For Availability
View on Model
97
Spring-Oven Door (2 Required)
Spring-Oven Door (2 Required) WPL 308735 Contact Us For Availability
View on Model
98
Screw 10 - 32 x 3/8``
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
View on Model
112
Dart-Button Head
Dart-Button Head WPL 296097 Contact Us For Availability
View on Model
113
Burner Box Bottom
Burner Box Bottom WPL 321164 Contact Us For Availability
View on Model
114
Broiler Pan Grid
Broiler Pan Grid WPL 293099 Contact Us For Availability
View on Model
115
Broiler Pan
Broiler Pan WPL 293098 Contact Us For Availability
View on Model
116
Oven Rack Guide-Rt. or Lt.
Oven Rack Guide-Rt. or Lt. WPL 305409 Contact Us For Availability
View on Model
117
Oven Rack (1 Required)
Oven Rack (1 Required) WPL 305408 Contact Us For Availability
View on Model
118
Retainer-Insulation (Rt. or Lt.)
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
View on Model
119
Oven Body
Oven Body WPL 316519 Contact Us For Availability
View on Model
120
Retainer - Oven Door Seal
Retainer - Oven Door Seal WPL 296103 Contact Us For Availability
View on Model
121
Support-Broiler Element (2 Required)
Support-Broiler Element (2 Required) WPL 285840 Contact Us For Availability
View on Model
122
Broiler Element
Broiler Element WPL 319487 Contact Us For Availability
View on Model
123
Plug Button
Plug Button WPL 101063 Contact Us For Availability
View on Model
125
Screw 10-32x7/16``
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
View on Model
126
Seal - Oven Door
Seal - Oven Door WPL 296102 Contact Us For Availability
View on Model
127
Clip (4 Required)
Clip (4 Required) WPL 112948 Contact Us For Availability
View on Model
128
Snap On Panel (White)
Snap On Panel (White) WPL 302095 Contact Us For Availability
View on Model
128
Snap On Panel (Almond)
Snap On Panel (Almond) WPL 308902 Contact Us For Availability
View on Model

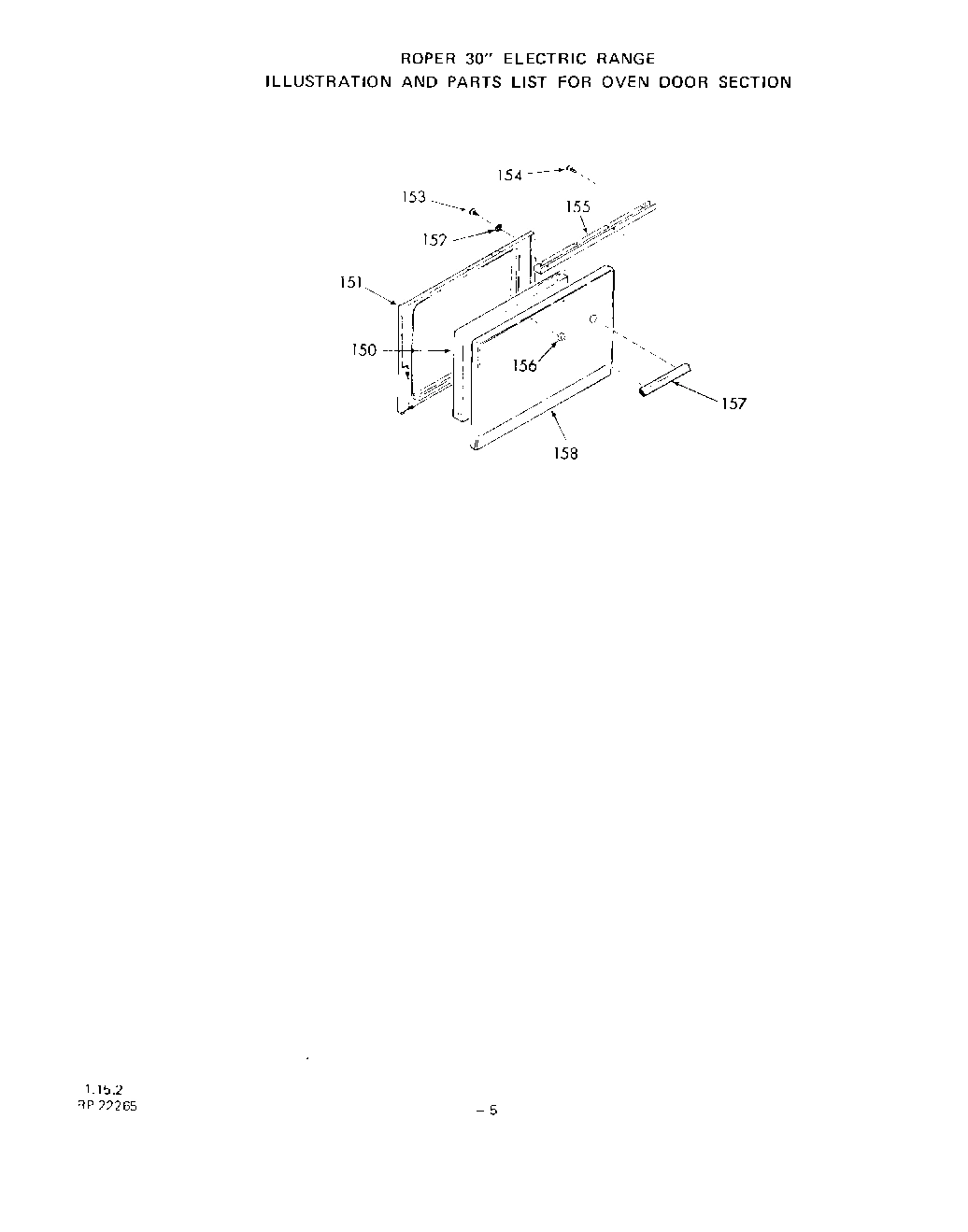

151
Lining-Oven Door
Lining-Oven Door WPL 316521 Contact Us For Availability
View on Model
152
Washer
Washer WPL 21067 Contact Us For Availability
View on Model
153
Screw 10-32 x 1/2``
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
View on Model
155
Spacer-Oven Door
Spacer-Oven Door WPL 319214 Contact Us For Availability
View on Model
156
Spacer-Door Handle
Spacer-Door Handle WPL 302343 Contact Us For Availability
View on Model
157
Door Handle
Door Handle WPL 309871 Contact Us For Availability
View on Model
158
Main Top
Main Top WPL 318874 Contact Us For Availability
View on Model
158
Front Panel-Oven Door (White)
Front Panel-Oven Door (White) WPL 322212 Contact Us For Availability
View on Model
158
Front Panel-Oven Door (Almond)
Front Panel-Oven Door (Almond) WPL 322213 Contact Us For Availability
View on Model
158
Controls
Controls WPL 322214 Contact Us For Availability
View on Model
158
Selector Switch
Selector Switch WPL 322216 Contact Us For Availability
View on Model
